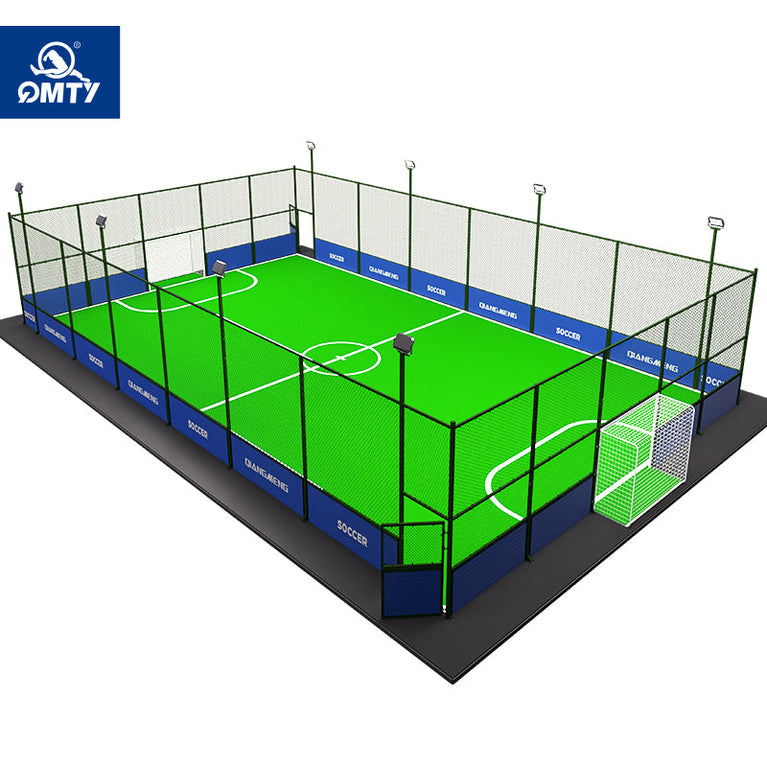

5 A SIDE CAGE FOOTBALL FIELD

5-A-Side Cage Football Field

General Specifications:

• Field Size: 25m ' 15m
• Rock Wool Board: 1m Height - Galvanised wire mesh height 3m
• Main Component Specifications: 80mm x 80mm x 2.5mm powder-coated galvanised steel columns. Column and corner column height 4.1m, elevated netting columns and floodlights 5m height
• Soccer Goal Dimensions: Length 3m, height 2m, Top depth 1.2m, Bottom depth 1.2m
• Soccer Goal Material: φ80 reinforced aluminium alloy with φ32 galvanised red frame
• Soccer Net Specifications: White Polyester, double-needle knotless net, wire diameter 5mm, mesh size 100 ' 100
• Fixing Method: Fixed to concrete ground with expansion bolts
• Surface Treatment: Shot blasting, grinding, powder coating
• Netting Type: Modular design, side is U-shaped structure, end is H-shape structure
• Lighting: 8 x 400W anti-glare floodlights, IP66 spotlight panel + multi-piece aluminium housing and adjustable bracket

Top, Bottom and Sides Specifications:

• Bottom Specifications: Made of 50mm thick sandwich panel with rock wool and polyurethane edging, outer layer covered with0.5mm galvanised sheet for resistance and cushioning.
• Upper Specifications: Black plastic-coated chain link mesh, mesh size 50 ' 50, wire diameter 3.8mm. Frame features a sun shaped structure with a double hook mesh design at the top and bottom.
• Both Sides: 100mm knotless black polyester mesh, 5mm wire diameter. Top: 100mm knotless black polyester mesh, 3mm wire diameter.
